Description

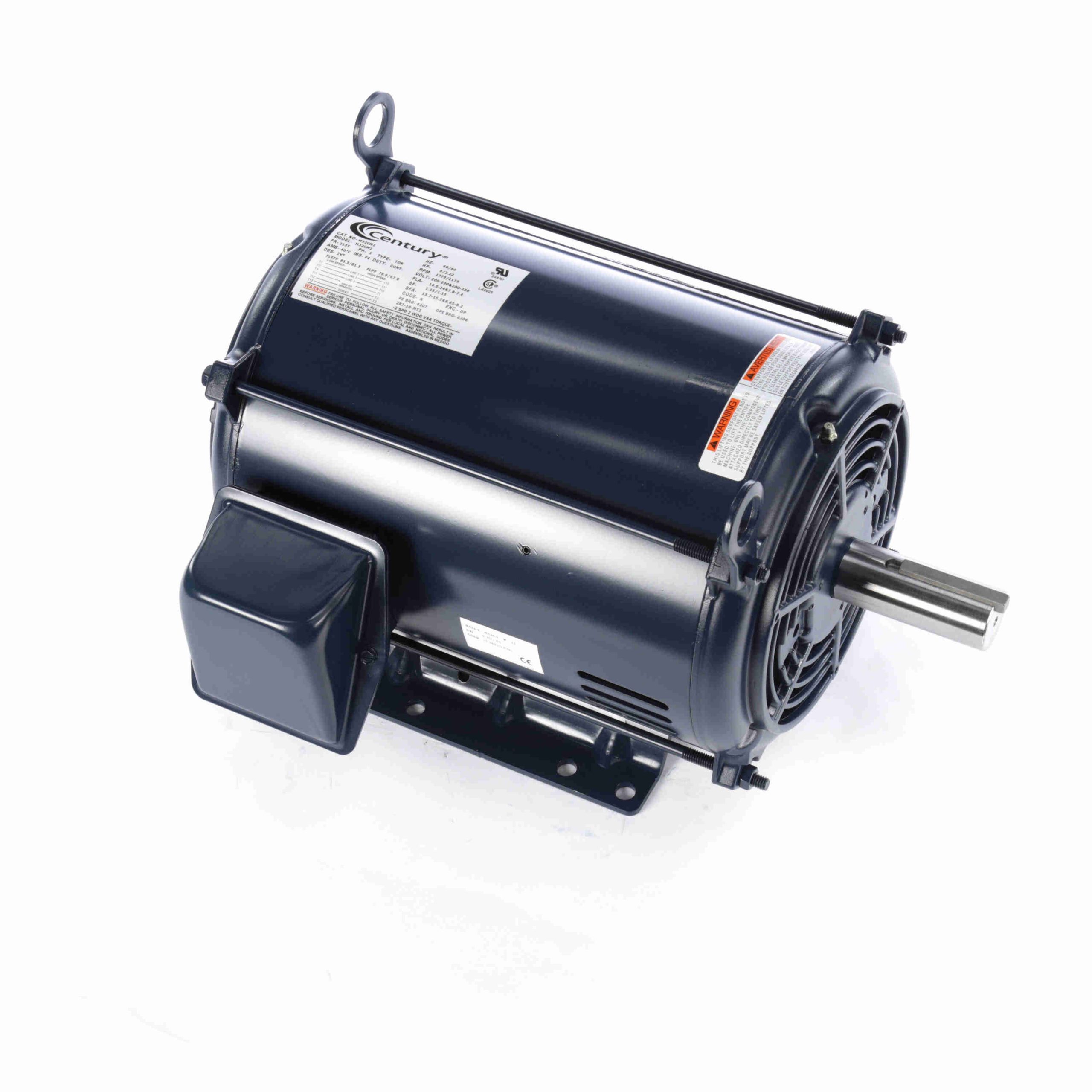

M320M2 – Century 5/2.22 HP 2 speed General Purpose Motor, 3 phase, 1800/1200 RPM, 200-230 V, 215T Frame, ODP – M320M2
M320M2 Century Three Phase ODP Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674067227 |
Weight: |
140 LB |
| Packaged Length: |
22.19 IN |
Packaged Width: |
16.5 IN |
| Packaged Height: |
14 IN |
Nameplate Specifications
| Output HP: |
5/2.22 Hp |
Output KW: |
3.7 kW |
| Frequency: |
60 Hz |
Voltage: |
200-230 V |
| Current: |
14.5-14/7.8-7.4 A |
Speed: |
1775/1175 rpm |
| Service Factor: |
1.15 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
215T |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
POLYPHASE |
Starting Method: |
Across The Line |
| Poles: |
4/6 |
Rotation: |
Clockwise |
| Mounting: |
Rigid base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
17.30 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.375 in |
| Shaft Extension: |
3.47 in |
Century Motors
Regal Beloit
