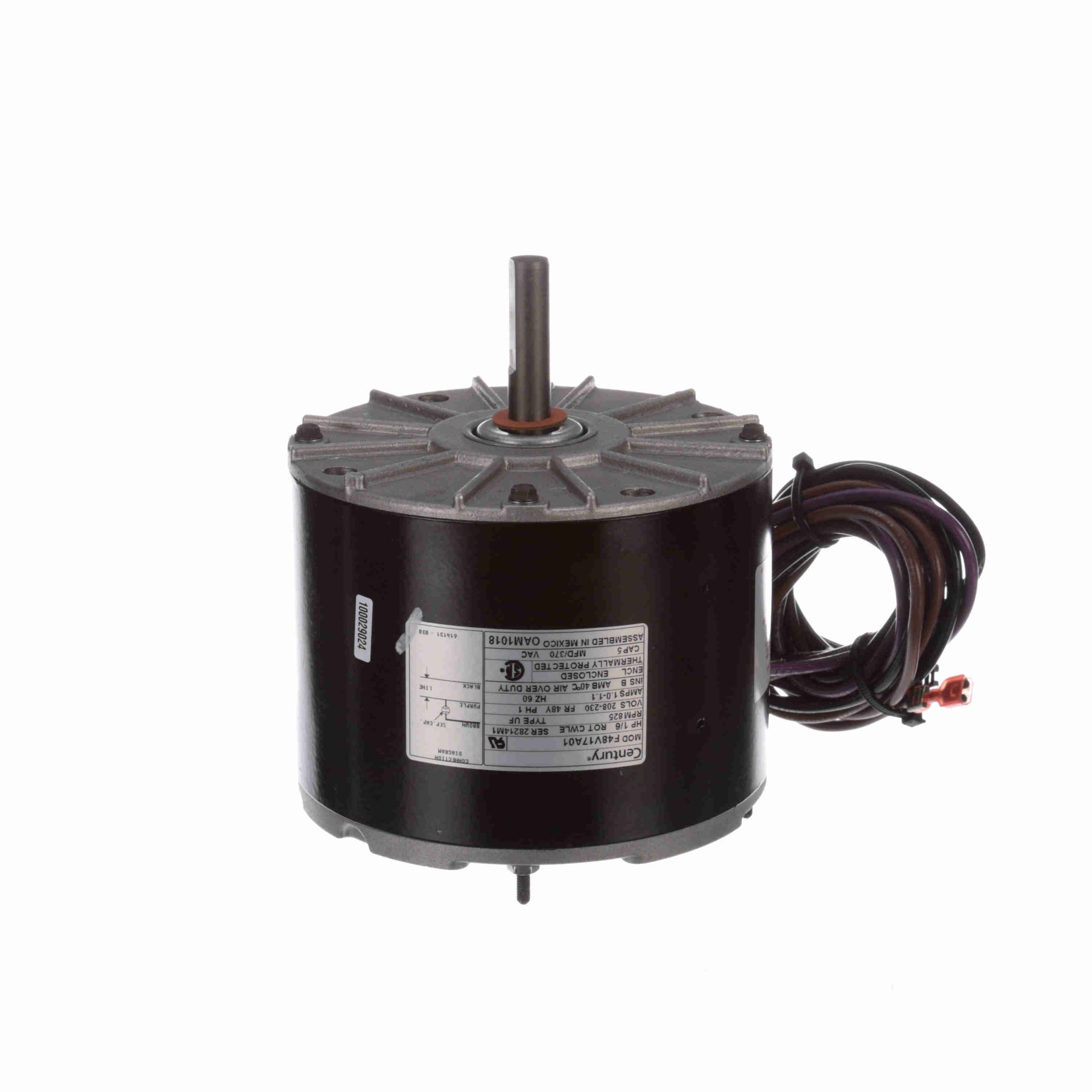

OAM1018 – Century 1/6 HP OEM Replacement Motor, 825 RPM, 208-230 Volts, 48 Frame, TEAO – OAM1018

OAM1018 – Century 1/6 HP OEM Replacement Motor, 825 RPM, 208-230 Volts, 48 Frame, TEAO – OAM1018

OAM1018 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • OEM Direct Replacement Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Flat
  • 50″ Leads with Quick Connect Terminals
  • Extended Studs Lead End, Vertical Shaft Down

Century Motors
Regal Beloit

Description

OAM1018 – Century 1/6 HP OEM Replacement Motor, 825 RPM, 208-230 Volts, 48 Frame, TEAO – OAM1018

OAM1018 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674026897 Weight: 13 LB
Packaged Length: 11 IN Packaged Width: 7.5 IN
Packaged Height: 7 IN

Nameplate Specifications

Output HP: 1/6 Hp Output KW: 0.13 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 1.0-1.1 A Speed: 825 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 48Y Enclosure: Totally Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 8 Rotation: Clockwise Lead End
Mounting: Extended Studs Motor Orientation: Vertical Shaft Down
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 6.74 in Frame Length: 3.75 in
Shaft Diameter: 0.500 in Shaft Extension: 2.0 FLAT in
