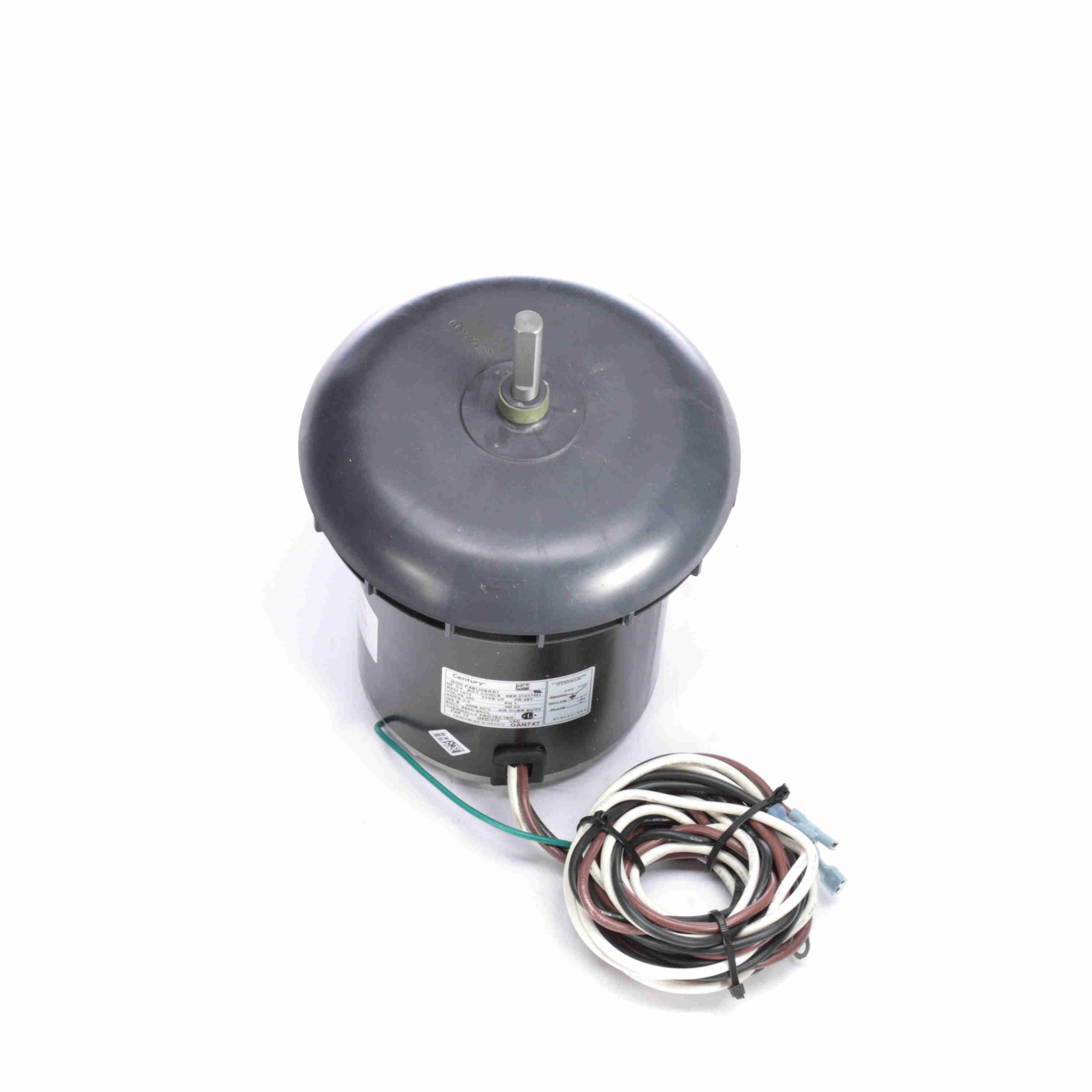

OAN140 – Century 3/4 HP OEM Replacement Motor, 1075 RPM, 460 Volts, 48 Frame, Semi Enclosed – OAN140

OAN140 – Century 3/4 HP OEM Replacement Motor, 1075 RPM, 460 Volts, 48 Frame, Semi Enclosed – OAN140

OAN140 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • OEM Direct Replacement Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End End-Frame, Enclosed Lead End Shell, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2″ Diameter Shaft with Double Flat
  • 98″ Leads with Quick Connect Terminals
  • Belly Band Mount Vertical Shaft Up

Century Motors
Regal Beloit

Description

OAN140 – Century 3/4 HP OEM Replacement Motor, 1075 RPM, 460 Volts, 48 Frame, Semi Enclosed – OAN140

OAN140 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674026934 Weight: 23 LB
Packaged Length: 15.88 IN Packaged Width: 8.81 IN
Packaged Height: 7.81 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 460 V
Current: 2.75 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 48Y Enclosure: Semi Enclosed
Thermal Protection: Automatic Ambient Temperature: 60 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Round Belly Band Motor Orientation: Vertical Shaft Up
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 10.36 in Frame Length: 5.75 in
Shaft Diameter: 0.500 in Shaft Extension: 4.0 in
