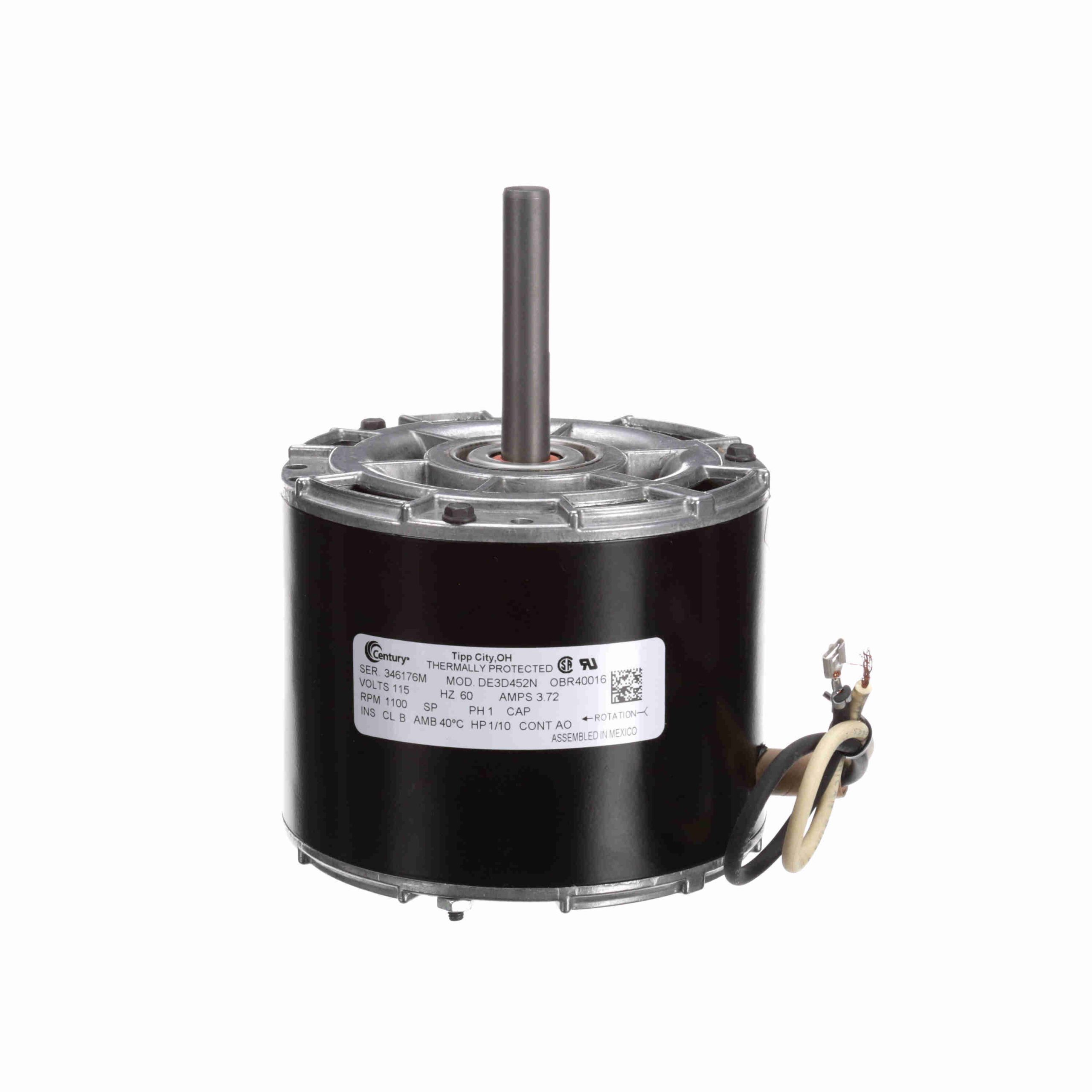

OBR40016 – Century 1/10 HP OEM Replacement Motor, 1100 RPM, 115 Volts, 42 Frame, TEAO – OBR40016

OBR40016 – Century 1/10 HP OEM Replacement Motor, 1100 RPM, 115 Volts, 42 Frame, TEAO – OBR40016

OBR40016 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • OEM Direct Replacement Motor
  • 5″ Diameter – 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Flat
  • 8″ Leads
  • Belly Band Mount

Century Motors
Regal Beloit

Description

OBR40016 – Century 1/10 HP OEM Replacement Motor, 1100 RPM, 115 Volts, 42 Frame, TEAO – OBR40016

OBR40016 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674027139 Weight: 8 LB
Packaged Length: 8.87 IN Packaged Width: 6.81 IN
Packaged Height: 6.81 IN

Nameplate Specifications

Output HP: 1/10 Hp Output KW: 0.07 kW
Frequency: 60 Hz Voltage: 115 V
Current: 3.72 A Speed: 1100 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42Y Enclosure: Totally Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Lead End
Mounting: Round Belly Band Motor Orientation: Horizontal
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Overall Length: 6.68 in Frame Length: 3.42 in
Shaft Diameter: 0.500 in Shaft Extension: 2.7 in
