Description

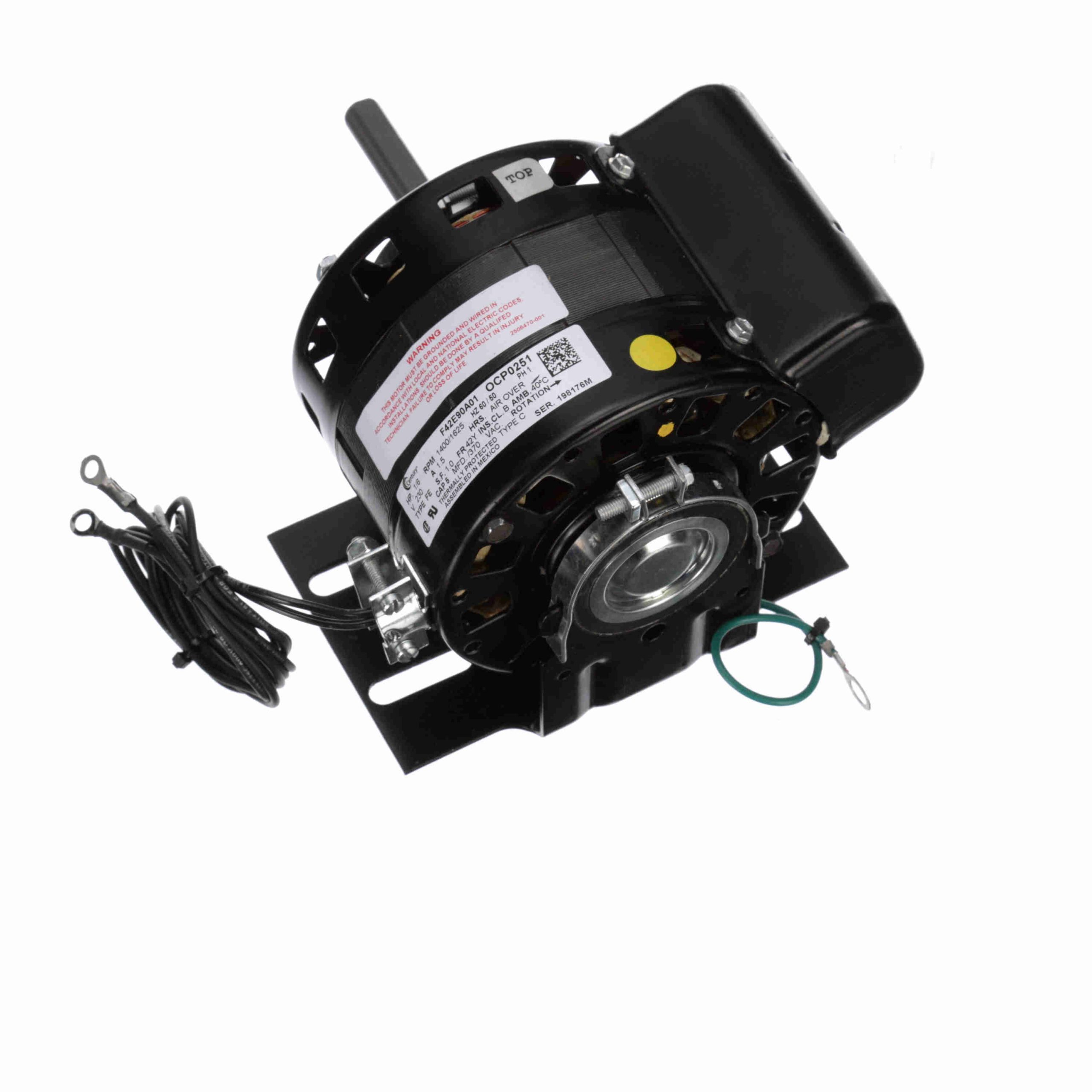

OCP0251 – Century 1/6 HP OEM Replacement Motor, 1400/1625 RPM, 230 Volts, 42 Frame, OAO – OCP0251
OCP0251 Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674027429 |
Weight: |
18 LB |
| Packaged Length: |
9 IN |
Packaged Width: |
9 IN |
| Packaged Height: |
7 IN |
Nameplate Specifications
| Output HP: |
1/6 Hp |
Output KW: |
0.13 kW |
| Frequency: |
50 Hz |
Voltage: |
230 V |
| Current: |
1.5 A |
Speed: |
1400/1625 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
42Y |
Enclosure: |
Open Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Clockwise Lead End |
| Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Double Flat |
| Overall Length: |
7.42 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
3.0 FLAT in |
