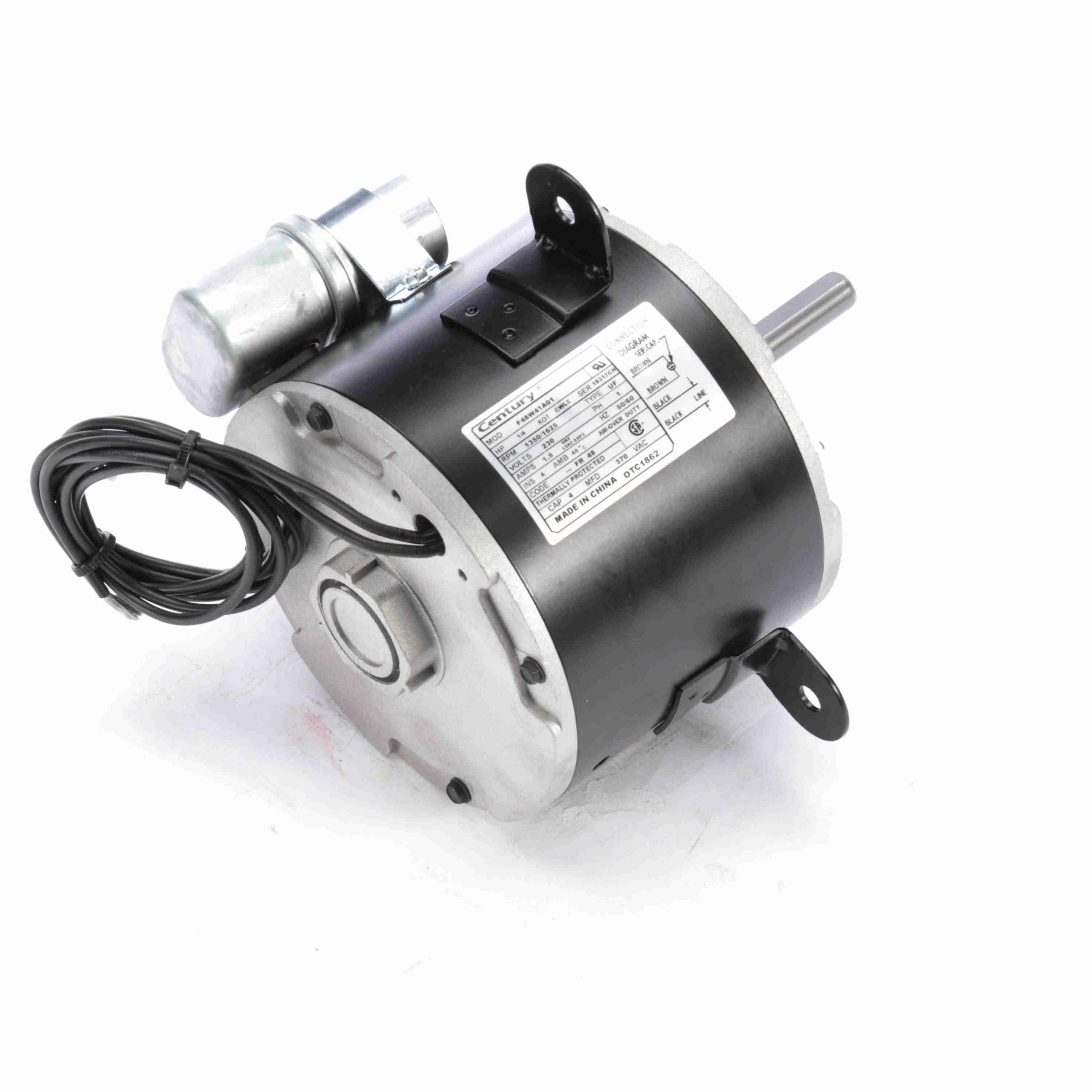

OTC1862 – Century 1/4 HP OEM Replacement Motor, 1350/1625 RPM, 230 Volts, 48 Frame, Semi Enclosed – OTC1862

OTC1862 – Century 1/4 HP OEM Replacement Motor, 1350/1625 RPM, 230 Volts, 48 Frame, Semi Enclosed – OTC1862

OTC1862 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • OEM Direct Replacement Motor
  • 5.6″ Diameter – 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
  • Class A Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2″ Diameter Shaft with Double Flats
  • 39″ Leads
  • Lug Mount, Hex Mounting Hub Shaft end and Lead End

Century Motors
Regal Beloit

Description

OTC1862 – Century 1/4 HP OEM Replacement Motor, 1350/1625 RPM, 230 Volts, 48 Frame, Semi Enclosed – OTC1862

OTC1862 Century HVAC/R OEM Replacement Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674028525 Weight: 11 LB
Packaged Length: 10.2 IN Packaged Width: 9.1 IN
Packaged Height: 9.4 IN

Nameplate Specifications

Output HP: 1/4 Hp Output KW: 0.19 kW
Frequency: 50 Hz Voltage: 230 V
Current: 1.9 A Speed: 1350/1625 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Air Over Insulation Class: A
Frame: 48Y Enclosure: Semi Enclosed
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Lead End
Mounting: Lug Motor Orientation: Vertical Shaft Down
Drive End Bearing: Ball Opp Drive End Bearing: Ball
Frame Material: Rolled Steel Shaft Type: Double Flat
Overall Length: 7.55 in Frame Length: 3.75 in
Shaft Diameter: 0.500 in Shaft Extension: 1/2 X 2 3/4 in
