Description

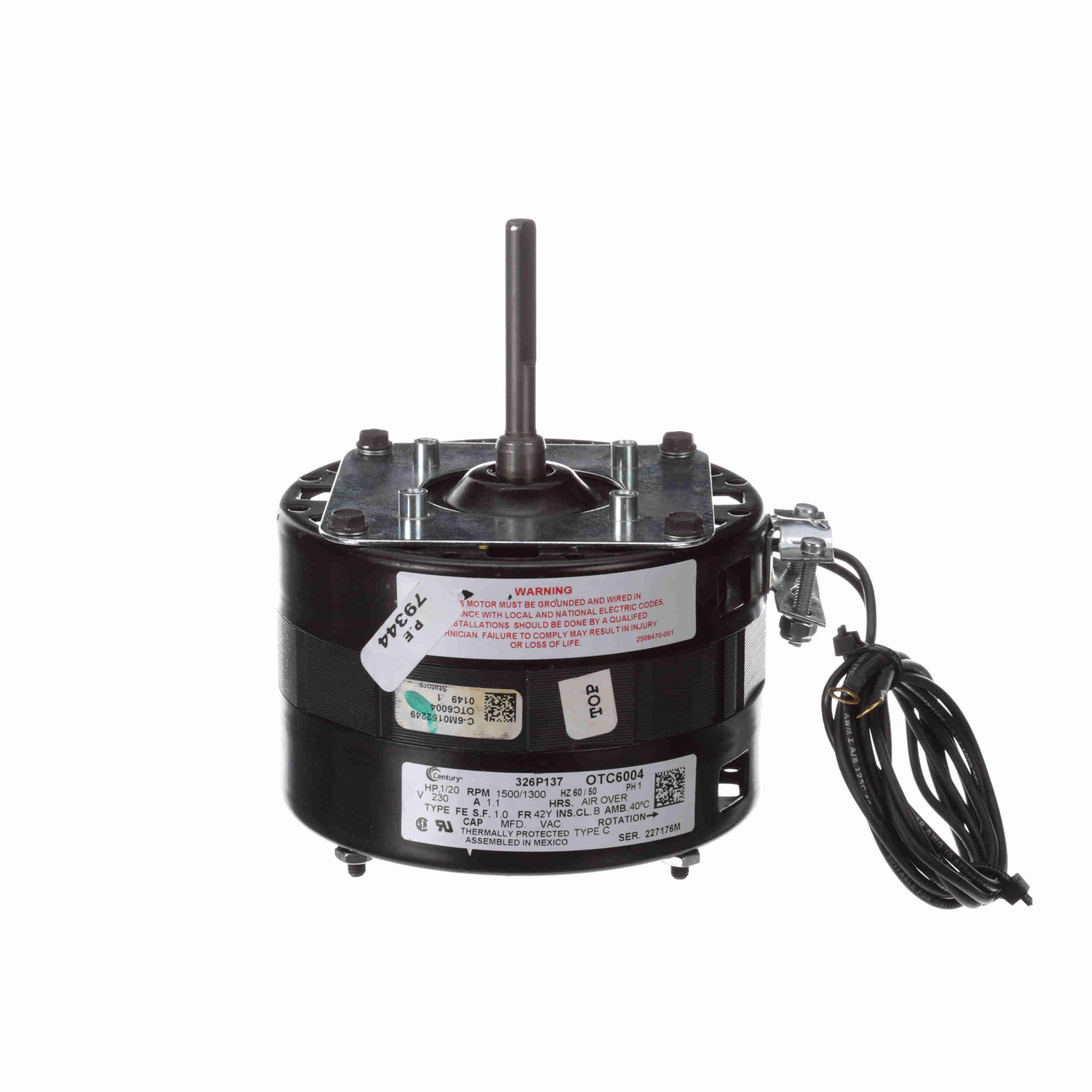

OTC6004 – Century 1/20 HP OEM Replacement Motor, 1500/1300 RPM, 230 Volts, 42 Frame, OAO – OTC6004
OTC6004 Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674028549 |
Weight: |
7 LB |
| Packaged Length: |
8.87 IN |
Packaged Width: |
5.81 IN |
| Packaged Height: |
5.81 IN |
Nameplate Specifications
| Output HP: |
1/20 Hp |
Output KW: |
0.04 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
1.1 A |
Speed: |
1500/1300 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
42Y |
Enclosure: |
Open Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Shaded Pole |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Special |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Na |
Shaft Type: |
Flat |
| Overall Length: |
6.15 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
.3X2.8 FLAT in |
