Description

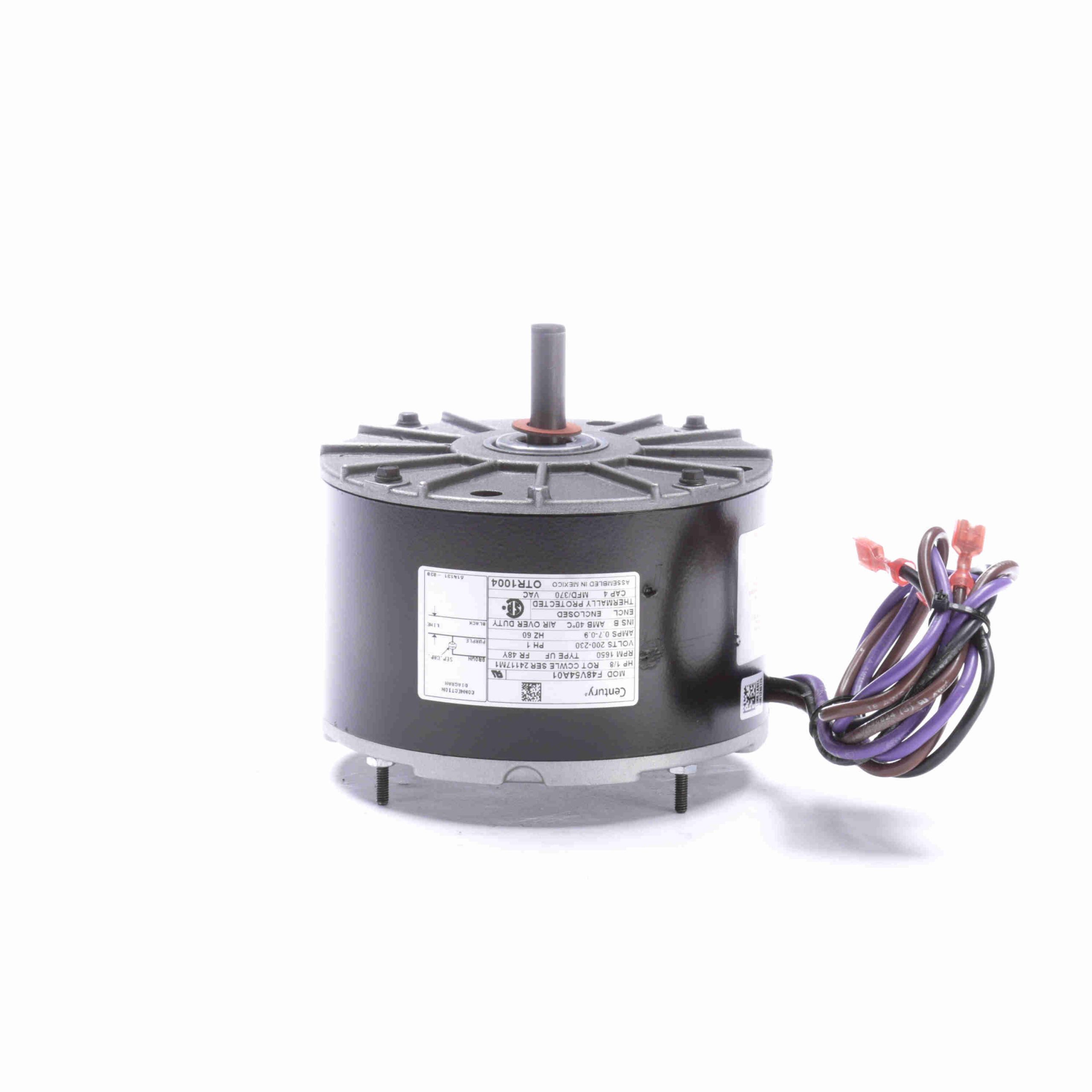

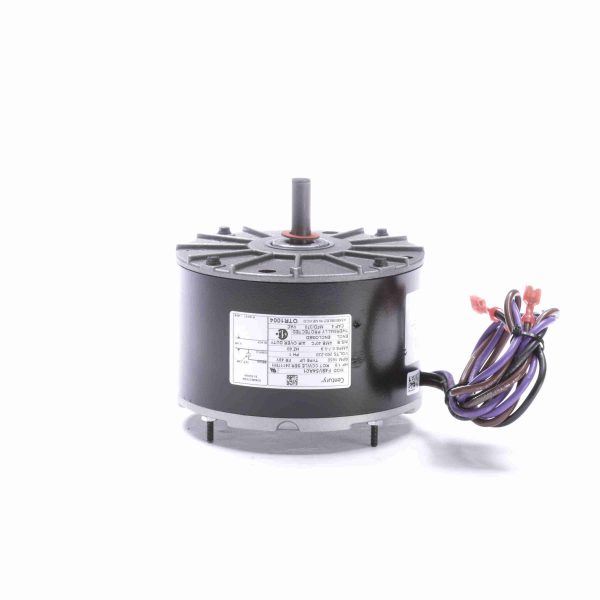

OTR1004 – Century 1/8 HP OEM Replacement Motor, 1650 RPM, 200-230 Volts, 48 Frame, TEAO – OTR1004
OTR1004 Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674028563 |
Weight: |
11 LB |
| Packaged Length: |
8.87 IN |
Packaged Width: |
6.81 IN |
| Packaged Height: |
6.81 IN |
Nameplate Specifications
| Output HP: |
1/8 Hp |
Output KW: |
0.10 kW |
| Frequency: |
60 Hz |
Voltage: |
200-230 V |
| Current: |
0.7-0.9 A |
Speed: |
1650 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Totally Enclosed |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
6 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Extended Studs |
Motor Orientation: |
Vertical Shaft Down |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
| Overall Length: |
5.61 in |
Frame Length: |
3.00 in |
| Shaft Diameter: |
0.500 in |
Shaft Extension: |
1.5 FLAT in |
