Description

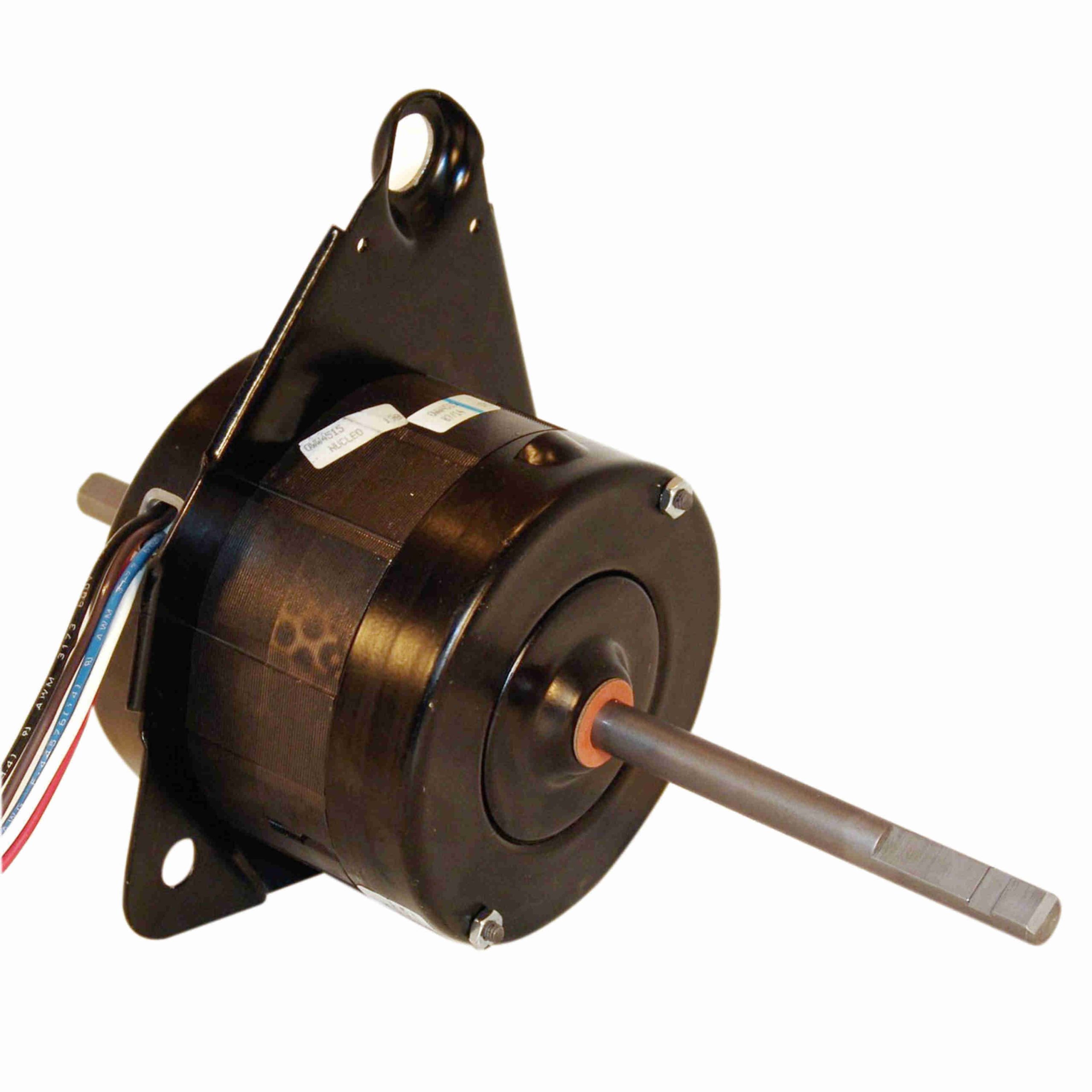

OWW4514 – Century 1/4 HP OEM Replacement Motor, 1330/1200 RPM, 2 Speed, 208-230 Volts, 42 Frame, TEAO – OWW4514
OWW4514 Century HVAC/R OEM Replacement Motors
Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.
General Specifications
| UPC: |
786674028655 |
Weight: |
10 LB |
| Packaged Length: |
9 IN |
Packaged Width: |
9 IN |
| Packaged Height: |
7 IN |
Nameplate Specifications
| Output HP: |
1/4 Hp |
Output KW: |
0.19 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230 V |
| Current: |
1.9 A |
Speed: |
1330/1200 rpm |
| Service Factor: |
1 |
Phase: |
1 |
| Duty: |
Air Over |
Insulation Class: |
B |
| Frame: |
42Y |
Enclosure: |
Totally Enclosed Air Over |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise Lead End |
| Mounting: |
Plate |
Motor Orientation: |
Horizontal |
| Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
| Frame Material: |
Na |
Shaft Type: |
Flat |
| Overall Length: |
7.91 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
2.8X.5X1.7 in |
