Description

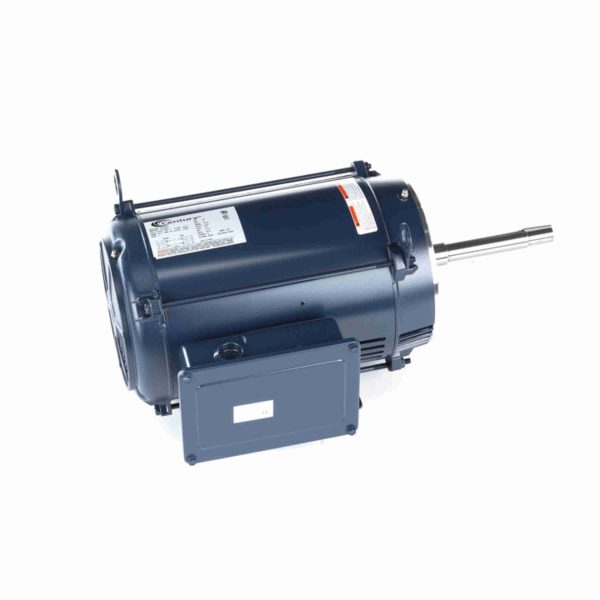

P312M2 – Century 5 HP Close-Coupled Pump Motor, 1 phase, 1800 RPM, 230 V, 213TCZ Frame, ODP – P312M2
P312M2 Century TCZ Pump (West Coast) Motors
General Specifications
| UPC: |
786674067029 |
Weight: |
172 LB |
| Packaged Length: |
28.38 IN |
Packaged Width: |
14.5 IN |
| Packaged Height: |
12.88 IN |
Nameplate Specifications
| Output HP: |
5 Hp |
Output KW: |
3.7 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
22 A |
Speed: |
1749 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Frame: |
213TCZ |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
Y |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
4 |
Rotation: |
Counterclockwise |
| Mounting: |
Rigid base |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Keyed |
Overall Length: |
22.98 in |
| Frame Length: |
11.15 in |
Shaft Diameter: |
1.25 in |
| Shaft Extension: |
7.62 in |
Century Motors
Regal Beloit
