Description

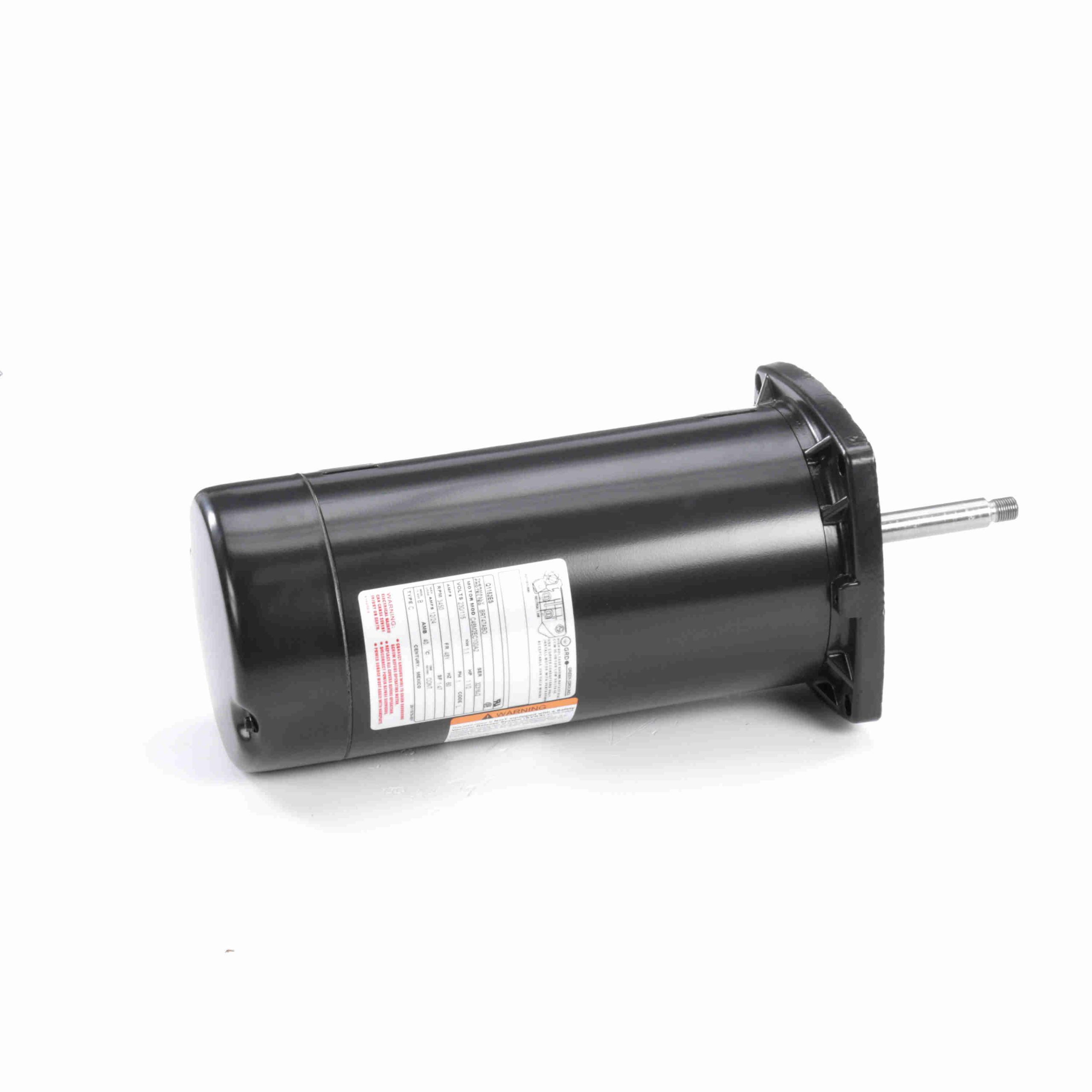

Q1152ES – Century 1 1/2 HP OEM Replacement (Except HVAC) Motor, 1 phase, 3600 RPM, 230/115 V, 48Y Frame, ODP – Q1152ES
Q1152ES Century OEM Replacement (Except HVAC) Motors
General Specifications
| UPC: |
786674029232 |
Weight: |
29 LB |
| Packaged Length: |
19 IN |
Packaged Width: |
8 IN |
| Packaged Height: |
8 IN |
Nameplate Specifications
| Output HP: |
1 1/2 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
230/115 V |
| Current: |
12/24 A |
Speed: |
3450 rpm |
| Service Factor: |
1.47 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Counterclockwise Pump End |
| Mounting: |
Round |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
16.29 in |
| Frame Length: |
9.56 in |
Shaft Diameter: |
0.750 in |
| Shaft Extension: |
4.347 in |
