Description

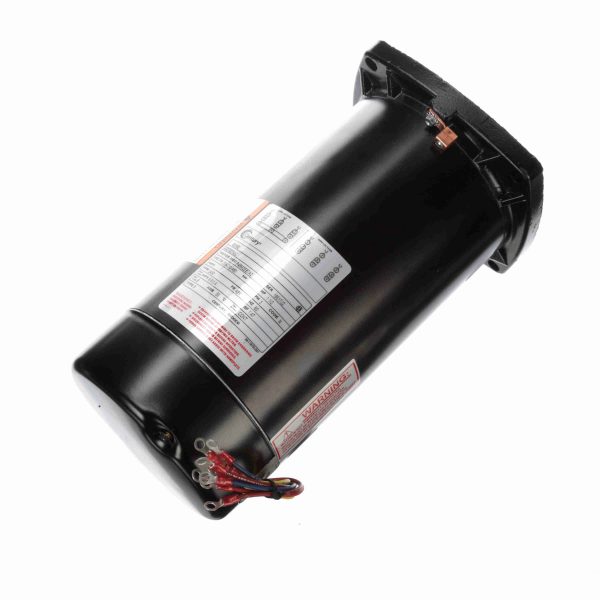

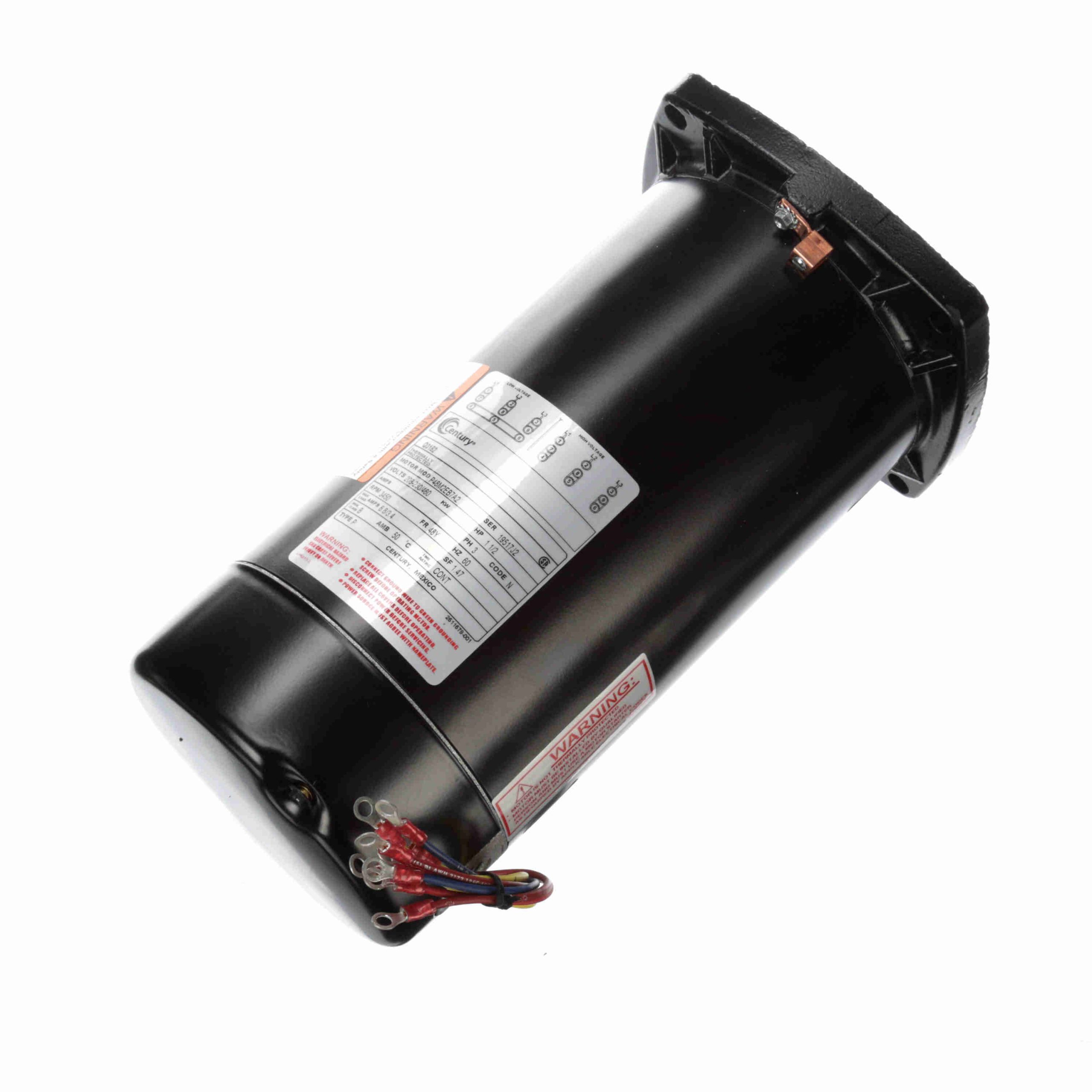

Q3152 – Century 1 1/2 HP Pool Pump Motor, 3 phase, 3600 RPM, 208-230/460 V, 48Y Frame, ODP – Q3152
Q3152 Century Induction Pool Pump Motors
General Specifications
| UPC: |
786674029287 |
Weight: |
26 LB |
| Packaged Length: |
16 IN |
Packaged Width: |
9.5 IN |
| Packaged Height: |
9.5 IN |
Nameplate Specifications
| Output HP: |
1 1/2 Hp |
Output KW: |
1.1 kW |
| Frequency: |
60 Hz |
Voltage: |
208-230/460 V |
| Current: |
6.8/3.4 A |
Speed: |
3450 rpm |
| Service Factor: |
1.47 |
Phase: |
3 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
None |
Ambient Temperature: |
50 °C |
| UL: |
No |
CSA: |
Y |
Technical Specifications
| Electrical Type: |
Polyphase |
Poles: |
2 |
| Rotation: |
Counterclockwise Pump End |
Mounting: |
Square Flange |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
BALL |
| Opp Drive End Bearing: |
BALL |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
12.57 in |
| Frame Length: |
8.69 in |
Shaft Diameter: |
0.625 in |
| Shaft Extension: |
0.906 in |
Century Motors
Regal Beloit
