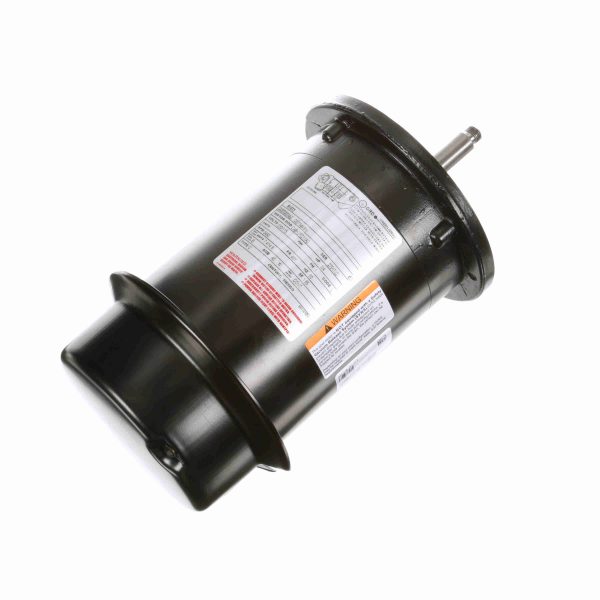

R1072 – Century 3/4 HP OEM Replacement (Except HVAC) Motor, 1 phase, 3600 RPM, 230/115 V, 48Y Frame, ODP – R1072

R1072 – Century 3/4 HP OEM Replacement (Except HVAC) Motor, 1 phase, 3600 RPM, 230/115 V, 48Y Frame, ODP – R1072

R1072 Century OEM Replacement (Except HVAC) Motors

  • Auto protector
  • Sealed switch design
  • 303 stainless steel threaded shaft

Century Motors
Regal Beloit

Description

R1072 – Century 3/4 HP OEM Replacement (Except HVAC) Motor, 1 phase, 3600 RPM, 230/115 V, 48Y Frame, ODP – R1072

R1072 Century OEM Replacement (Except HVAC) Motors

General Specifications

UPC: 786674029355 Weight: 21 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 230/115 V
Current: 7.4/14.8 A Speed: 3450 rpm
Service Factor: 1.65 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48Y Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: No CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start Induction Run Starting Method: Across The Line
Poles: 2 Rotation: Counterclockwise Pump End
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 13.08 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.945 in
