Description

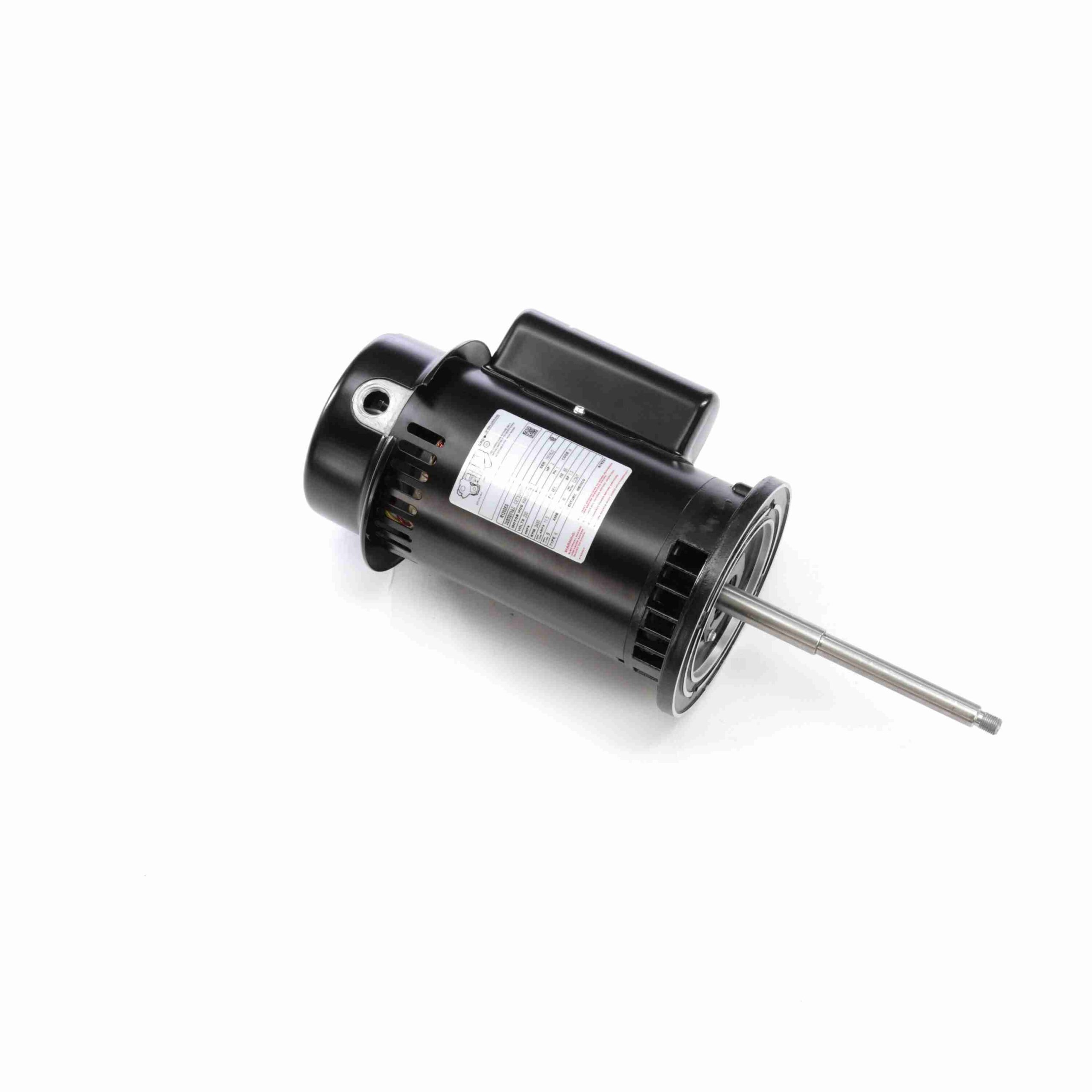

R1202ES – Century 2 HP OEM Replacement (Except HVAC) Motor, 1 phase, 3600 RPM, 230 V, 48Y Frame, ODP – R1202ES
R1202ES Century OEM Replacement (Except HVAC) Motors
General Specifications
| UPC: |
786674029423 |
Weight: |
33 LB |
| Packaged Length: |
23 IN |
Packaged Width: |
10 IN |
| Packaged Height: |
9 IN |
Nameplate Specifications
| Output HP: |
2 Hp |
Output KW: |
1.5 kW |
| Frequency: |
60 Hz |
Voltage: |
230 V |
| Current: |
11.5 A |
Speed: |
3450 rpm |
| Service Factor: |
1.3 |
Phase: |
1 |
| Duty: |
Continuous |
Insulation Class: |
B |
| Frame: |
48Y |
Enclosure: |
Open Drip Proof |
| Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
| UL: |
No |
CSA: |
Y |
| CE: |
N |
Technical Specifications
| Electrical Type: |
Capacitor Start Capacitor Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Counterclockwise Pump End |
| Mounting: |
Round |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
| Shaft Type: |
Threaded |
Overall Length: |
19.57 in |
| Frame Length: |
8.06 in |
Shaft Diameter: |
0.725 in |
| Shaft Extension: |
7.625 in |
Century Motors
Regal Beloit
