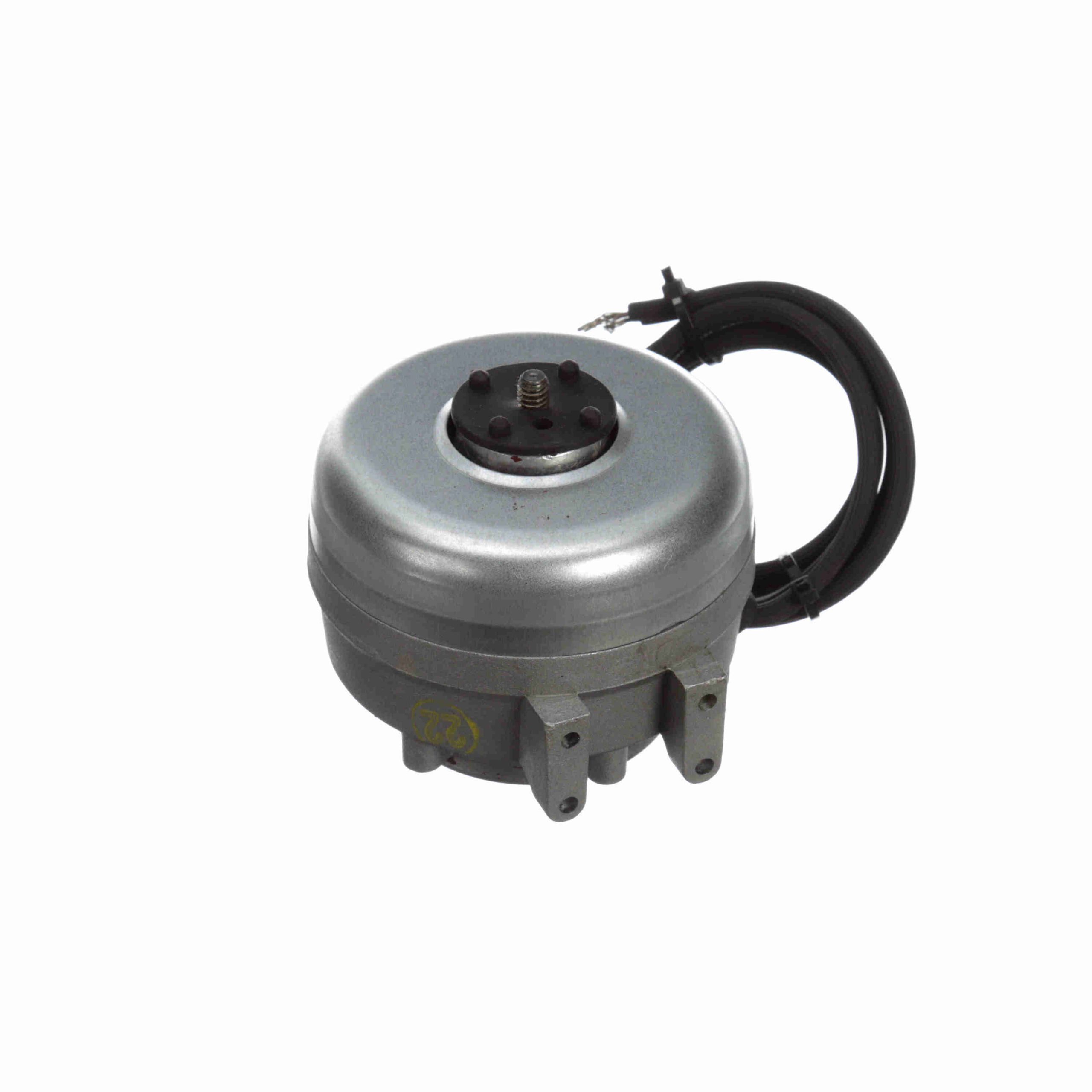

UB553 – Fasco 2.3 WATT Refrigeration Motor, 1300 RPM, 230 Volts, Unit Bearing, TEAO – UB553

UB553 – Fasco 2.3 WATT Refrigeration Motor, 1300 RPM, 230 Volts, Unit Bearing, TEAO – UB553

UB553 Fasco Unit Bearing Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

  • Refrigeration Motor
  • Unit Bearing
  • Shaded Pole
  • Impedance Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Bearing – Unit
  • 1/4 x 20 Threaded Shaft
  • 28″  Leads with .05″ Strip
  • 2 Mounting Feet, 5 Rear Mounting Holes

Fasco Motors
Regal Beloit

Description

UB553 – Fasco 2.3 WATT Refrigeration Motor, 1300 RPM, 230 Volts, Unit Bearing, TEAO – UB553

UB553 Fasco Unit Bearing Motors

Please advise CFM, static pressure, voltage, phase, and/or horsepower on specifications, drawings, or existing equipment for an accurate quote.

General Specifications

UPC: 786674069993 Weight: 2 LB
Packaged Length: 4.25 IN Packaged Width: 4.5 IN
Packaged Height: 4 IN

Nameplate Specifications

Output Watts: 2.3 W Frequency: 60 Hz
Voltage: 230 V Current: 0.08 A
Speed: 1300 rpm Service Factor: 1
Phase: 1 Duty: Continuous
Insulation Class: B Frame: UNIT BEARING
Enclosure: Totally Enclosed Air Over Thermal Protection: Impedence
Ambient Temperature: 40 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise Opposite Shaft End
Mounting: 2 BOSS/OSE 5 HOLES Drive End Bearing: Unit
Opp Drive End Bearing: Unit Frame Material: Aluminum
Shaft Type: Threaded Frame Length: 2.87 in
Shaft Diameter: 1/4×20 in Shaft Extension: .415 in
